10" – 50" Tall - Wet listed Wall Mount

Material: Steel chassis and cage
Lens Material: 0.10" extruded white acrylic (WSA); top and bottom white acrylic lens standard
Mounting: Wall mount — integral mounting plate with keyhole slots
ADA Compliant: Yes — 4" depth
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions: MDIW-716: 16" H × 6.75" W × 4" D
Dimensions: MDIW-718: 18" H × 6.75" W × 4" D
Dimensions: MDIW-726: 26" H × 6.75" W × 4" D
Dimensions: MDIW-738: 38" H × 6.75" W × 4" D
Dimensions: MDIW-750: 50" H × 6.75" W × 4" D
Dimensions: MDIW-760: 60" H × 6.75" W × 4" D

Replaceable LED Module: Yes — field replaceable

3-Step MacAdam Binning: Standard

Lumens: Source lumens — see configuration table

Lumen Maintenance: > 60,000 hours

Integral Driver: Standard

Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.

Voltage: 120–277V universal standard

CRI: > 90 Standard

CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K

UL / CUL Listing: UL and CUL Listed — WET location

Warranty: 5-year warranty on LED components with optional 10-year warranty available

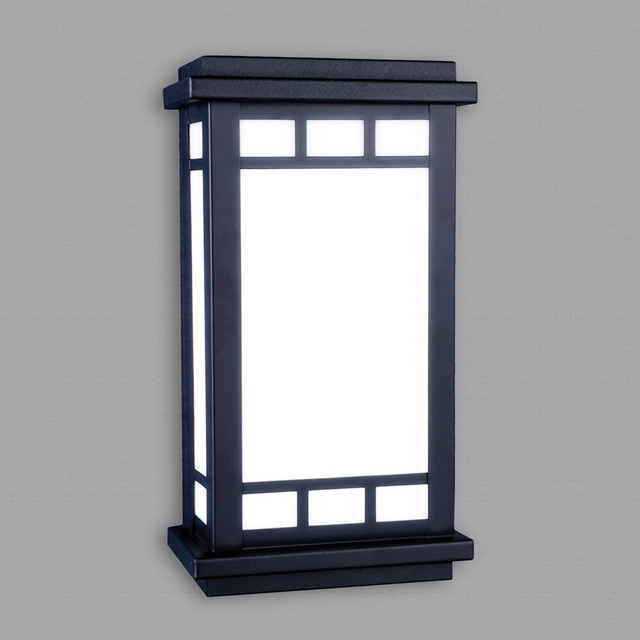

The MDIW-700-LED is a versatile outdoor sconce that balances decorative cage character with durable exterior construction across six height options. Its multiple cage styles and ADA compliance make it suitable for a broad range of commercial and institutional exterior lighting programs.



•   Building entries and covered walkways

•   Hotel and hospitality building exterior corridors and breezeways

•   Multifamily residential outdoor corridors and parking structures

•   Healthcare campus and institutional building perimeters

•   Retail and commercial building entries



•   ADA compliant — 4" depth

•   Six heights: 16", 18", 26", 38", 50", 60" — all 6.75" wide

•   Four cage style options (A, B, C, D, plus custom X)

•   0–10V dimming; TRIAC/ELV on qualifying configurations

•   Optional photocell (120V or 277V)

•   Optional battery backup (BB10 — 10 W, 90 min; 0–10V only)

•   Optional 347V input voltage

•   Made in America

•   5-year LED component warranty (optional 10-year available)

•   UL and CUL Listed — WET location
