PINWPINW
10" Tall Wet Listed Wall Lighting

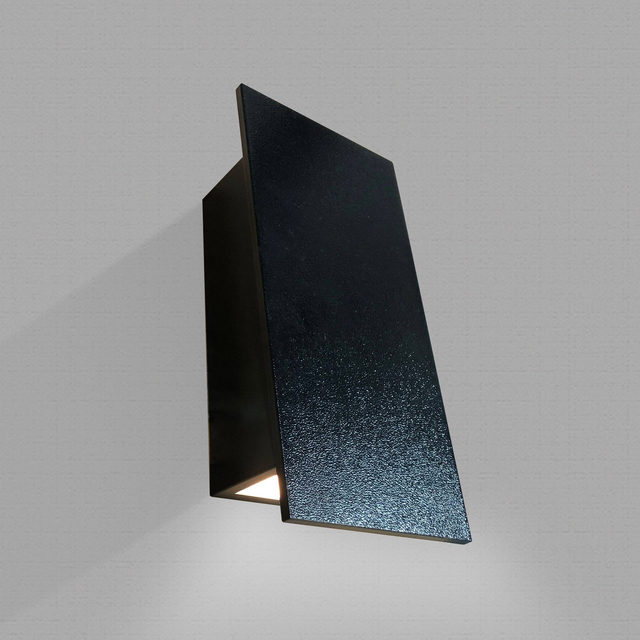

The PINW-LED is a sleek, low-profile outdoor step and path light featuring a steel housing and chassis with an aluminum front plate and an acrylic diffuser. The fixture delivers downlight-only/Dark Sky illumination, making it ideal for step, stair, and pathway lighting applications where controlled light distribution is critical.
The fixture is 0–10V dimmable and is available with white frosted or clear smooth frosted acrylic diffusers. A universal mounting plate simplifies field installation. The PINW-LED is ADA compliant and UL and CUL Listed for WET locations when mounted downward — offering excellent versatility for covered and exposed exterior environments.
The PINW-LED carries a 5-year warranty on LED components, with a 10-year option available. Proudly made in America.
Resources
Material: Steel housing and chassis with aluminum front plate
Lens Material: White frosted acrylic (WFA); optional clear smooth frosted acrylic (CSA)
Mounting: Universal mounting plate
ADA Compliant: Yes — 2" depth
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions:
PINW-11-LED: H 10 1/2" × W 5" × D 2" (fixture body)
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K
UL / CUL Listing: UL and CUL Listed — WET location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
The PINW-LED from Lightway is a precision step and path light designed for demanding outdoor environments. Its downlight-only distribution, WET rating, and ADA compliance make it a go-to choice for exterior stair and walkway lighting.
Ideally Suited For:
• Exterior stair and step lighting
• Outdoor pathway and walkway illumination
• Covered and open-air commercial entries
• Hospitality property grounds and hardscape
• Multi-family residential and mixed-use buildings
. Dark Sky Compliant
Key Features & Options:
• ADA compliant — low-profile 2" depth
• WET location rated when mounted downward
• Downlight-only distribution — no glare upward
• 0–10V dimming standard
• White frosted or clear smooth frosted acrylic diffuser
• Universal mounting plate for easy installation
• Field replaceable LED module
• 5-year LED warranty; 10-year option available
Ratings & Compliance
- ADA
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Made in America
- RoHS
- Title 24
- Wet
Lumens
- 1180
Dimming Protocol
- 0-10 V
- ELV
- Phase Dimming
- Triac
CRI
- 91
Shape
- Rectangular
Lamp Source
- LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Steel
Watts
- 12
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
