NEAWNEAW
13" – 60" Tall - Wet listed Wall Mount

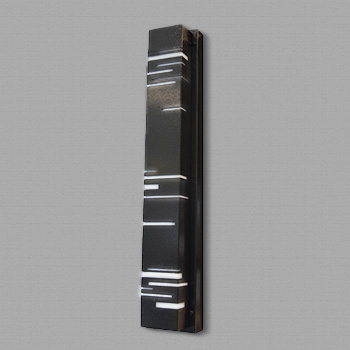

The NEAW-LED is a vandal-resistant outdoor LED wall sconce with a decorative horizontal fin diffuser design set within a steel housing and chassis. Available in five heights from 13" to 60" on a compact 3" × 3½" body, the fixture mounts on a standard 2×4 junction box or 4" square post. An optional two-color finish choice lets the frame and horizontal cover be specified independently for architectural coordination.
Standard 0–10V dimming to 10% is included. Battery backup is available on fixtures 426 and larger for 90-minute emergency illumination. Optional all-aluminum construction enhances corrosion resistance in demanding environments.
The NEAW-LED is ADA compliant, UL and CUL WET location listed, and Made in America with a 5-year warranty on LED components.
Resources
Material: Steel housing and chassis
Lens Material: Vandal-resistant acrylic with horizontal fin design; optional two-color frame and cover finish
Mounting: Integral mounting plate; 2×4 J-Box or 4" square post
ADA Compliant: Yes — 3½" depth
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions: NEAW-413: H 13" × W 3½" × D 3" | MC 6.5"
NEAW-426: H 26" × W 3½" × D 3" | MC 13"
NEAW-438: H 38" × W 3½" × D 3" | MC 19"
NEAW-450: H 50" × W 3½" × D 3" | MC 25"
NEAW-460: H 60" × W 3½" × D 3" | MC 30"
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0-10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
UL / CUL Listing: UL and CUL Listed — WET location
Warranty: 5-year warranty on LED components with optional 10-year warranty available.
The NEAW-LED combines vandal-resistant durability with a distinctive horizontal fin aesthetic and ADA compliance, making it a strong specification for exposed public-environment applications.
Ideally Suited For:
• Parking structures and transit corridors
• Public parks and recreational facility exteriors
• ADA-accessible building entries and pathways
• Multifamily residential stairwells and corridors
• School and institutional building exteriors
Key Features & Options:
• Vandal-resistant acrylic with horizontal fin design
• ADA compliant at 3½" depth
• Five heights: 13" through 60"
• Optional two-color frame and front cover finish
• 0–10V dimming standard (to 10%)
• Optional battery backup (426 and larger) — 90 min.
• Optional all-aluminum construction
• Mounts on 2×4 J-Box or 4" square post
• UL/CUL WET location listed
• Made in America
• 5-year LED component warranty
Ratings & Compliance
- ADA
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Made in America
- RoHS
- Title 24
- Wet
Lumens
- 1210
- 2420
- 3630
- 4840
- 6050
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV
- Phase Dimming
- Triac
CRI
- 91
Shape
- Rectangular
Lamp Source
- LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Steel
Watts
- 9
- 18
- 27
- 36
- 45
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
