DKBWDKBW
10" to 26" Tall Wet Listed Wall Lighting

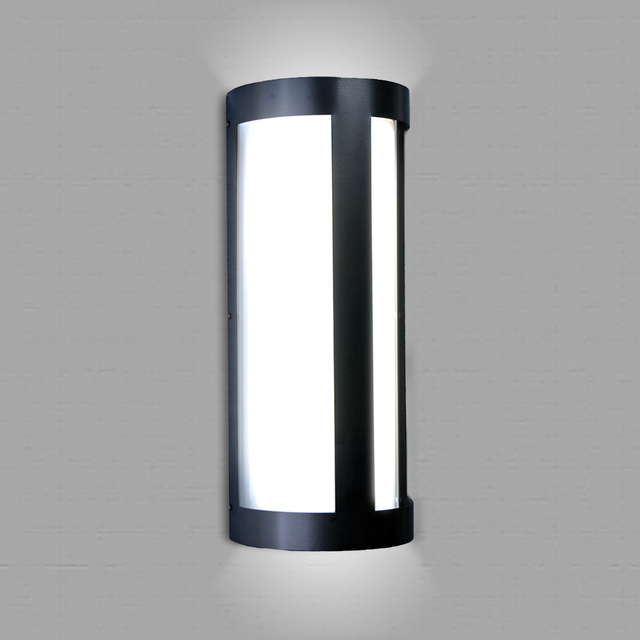

The DKBW-LED is a high-output cylindrical LED wall bracket sharing the same elegant shielded cage design as the DKAW series, but powered by a single high-performance F4D module delivering 48 watts and 4,384 source lumens uniformly across all four sizes — 10", 16", 22¼", and 26½". The steel housing, chassis, and cage feature a shield design offset from the .10" thick extruded acrylic diffuser, with standard top and bottom white acrylic accent lenses.
The field-replaceable LED module provides CRI > 90 color rendering and operates on 0–10V dimming with universal 120–277V input. Optional 347V input expands compatibility. Optional photocell (21) for dusk-to-dawn control and optional all-aluminum construction (42) are available. Battery backup (BB10, 10W / 1,170 lm / 90 min, excludes DKBW-10) adds emergency capability.
UL and CUL listed for WET locations. Extensive finish palette available. Backed by a 5-year LED component warranty with optional 10-year coverage.
Resources
Material: Steel housing, chassis, and cage; shield design offset from lens
Lens Material: .10" thick extruded acrylic diffuser; top and bottom white acrylic lens standard (WSA)
Mounting: Integral mounting plate; keyhole slots left and right
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
Proudly made in America — BABA compliant options always available.
Dimensions: 10": H 10" × W 9" × D 6";
16": H 16" × W 9" × D 6";
22": H 22¼" × W 9" × D 6";
26": H 26½" × W 9" × D 6"
16": H 16" × W 9" × D 6";
22": H 22¼" × W 9" × D 6";
26": H 26½" × W 9" × D 6"
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
UL / CUL Listing: UL and CUL Listed — WET location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
The DKBW-LED delivers high-output LED performance — 48W / 4,384 lm across all four sizes — in the same distinguished shielded cylindrical form as the DKAW series. WET-rated with photocell, battery backup, and optional 347V, it excels in exterior commercial, hospitality, and high-traffic applications.
Ideally Suited For:
• High-traffic commercial building entries
• Hospitality and resort exterior facades
• Retail and mixed-use exterior walls
• Parking and transit facility perimeters
• Covered outdoor public spaces
Key Features & Options:
• High output — 48W / 4,384 lm across all sizes
• WET-rated — UL/CUL listed for exterior use
• CRI > 90 for superior color rendering
• Four height options: 10", 16", 22¼", 26½"
• Field-replaceable LED module
• 0–10V dimming standard
• Optional photocell (21) — 120V or 277V
• Optional battery backup — BB10 (10W, 1,170 lm, 90 min; excludes DKBW-10)
• Optional all-aluminum construction (42)
• Optional 347V input voltage
• 60,000+ hour lumen maintenance
• 5-year LED warranty; 10-year option available
• Made in America
Ratings & Compliance
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Made in America
- RoHS
- Title 24
- Wet
Lumens
- 4384
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV
- Phase Dimming
- Triac
CRI
- 91
Shape
- Spherical
Lamp Source
- LED
- Screw-In LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Steel
Watts
- 48
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
Controls Options
- Photocell
