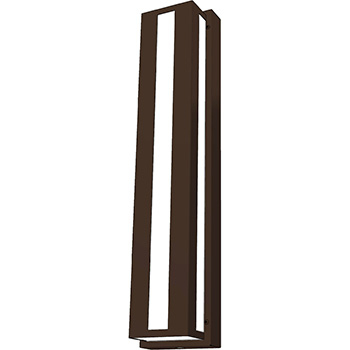

MESW
13" – 50" Tall - Wet listed Wall Mount
The MESW LED Series combines ADA‑compliant depth with durable steel construction and a UV‑stabilized, high‑impact DR acrylic diffuser to deliver reliable, uniform illumination across a wide range of architectural environments. Designed for straightforward installation, the fixture mounts directly to a standard J‑box using an integral mounting plate and includes both top and bottom lenses for balanced light distribution. Available in five heights from 13" to 50", the MESW Series supports multiple lumen outputs and color temperatures. Optional features include photocell control, all‑aluminum construction, and battery backup for sizes 526 and larger. With CRI > 90, universal 120/277V operation, and UL/CUL Wet Location listing, the MESW Series is engineered for long‑term performance indoors or outdoors. Proudly made in America, with BABA‑compliant options always available.
Resources
Steel housing and chassis
UV‑stabilized, high‑impact resistant DR acrylic diffuser
Integral mounting plate; hardware included
Mounts to a standard J‑box
Top and bottom lens
Optional all‑aluminum construction (42)
Available heights: 13", 18", 26", 38", 50"
Mount‑center dimensions: 6.5", 9", 13", 19", 25"
UV‑stabilized, high‑impact resistant DR acrylic diffuser
Integral mounting plate; hardware included
Mounts to a standard J‑box
Top and bottom lens
Optional all‑aluminum construction (42)
Available heights: 13", 18", 26", 38", 50"
Mount‑center dimensions: 6.5", 9", 13", 19", 25"
LED light source
Dimming to 10% included (0–10V)
CRI > 90
Replaceable LED module
Universal 120/277V standard
Optional photocell (21) — specify voltage (01 = 120V, 02 = 277V)
Optional battery backup (BB10) for MESW‑526 and larger (10W, 1170 lm, 90 minutes)
UL and CUL Wet Location listed
5‑year warranty on LED components
Dimming to 10% included (0–10V)
CRI > 90
Replaceable LED module
Universal 120/277V standard
Optional photocell (21) — specify voltage (01 = 120V, 02 = 277V)
Optional battery backup (BB10) for MESW‑526 and larger (10W, 1170 lm, 90 minutes)
UL and CUL Wet Location listed
5‑year warranty on LED components
Features & Benefits
- ADA‑compliant profile ideal for public corridors and accessible routes
- Wet Location rated for indoor or outdoor use
- Multiple sizes and lumen packages for application flexibility
- High‑impact DR acrylic diffuser ensures long‑term clarity
- Optional photocell for dusk‑to‑dawn operation
- Optional battery backup for emergency egress illumination
- Proudly made in America
- BABA‑compliant options always available
Ideally Suited For
- Multi‑family corridors
- Hospitality environments
- Commercial building exteriors
- Educational facilities
- Healthcare buildings
- Government and public facilities
- Indoor or outdoor applications requiring ADA + Wet Location compliance
Ratings & Compliance
- ADA
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Made in America
- RoHS
- Title 24
- Wet
Lumens
- 1210
- 1600
- 2420
- 3630
- 4840
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
- Phase Dimming
- Triac (Leading Edge)
CRI
- 91
Lamp Source
- LED
- Screw-In LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Steel
Watts
- 9
- 12
- 18
- 27
- 36
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
Controls Options
- Photocell
