LEXH

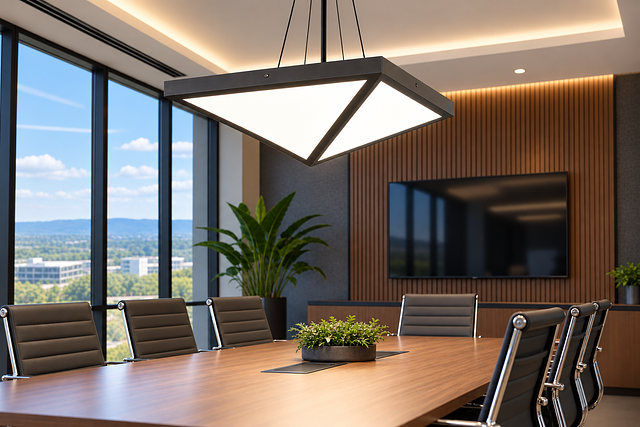

LEXH Conference Room2.pngLEXH
New Product
Damp listed Pendants - 36" wide
The LEXH-LED is a bold, geometric suspended pendant built with an aluminum housing and steel chassis. A white smooth acrylic lens delivers soft, even illumination across the full face of the fixture, creating a striking architectural statement in open spaces.
Standard 0–10V dimming provides smooth control down to 10% or 1%, powered by a universal 120–277V driver and a field-replaceable LED module with CRI above 90. The fixture is offered in a 36" size with a standard 108" overall height, and custom overall heights are available to suit any ceiling.
Suspension is by four aircraft cables with cord, and multiple canopy and stem options are available, with a mounting kit included for a standard J-box. An optional battery backup provides emergency operation. The LEXH-LED is UL and CUL listed for damp locations,
Build America, Buy America Act compliant, and backed by a 5-year warranty on LED components.
Build America, Buy America Act compliant, and backed by a 5-year warranty on LED components.
The LEXH-LED is a bold, geometric suspended pendant built with an aluminum housing and steel chassis. A white smooth acrylic lens delivers soft, even illumination across the full face of the fixture, creating a striking architectural statement in open spaces.
Standard 0–10V dimming provides smooth control down to 10% or 1%, powered by a universal 120–277V driver and a field-replaceable LED module with CRI above 90. The fixture is offered in a 36" size with a standard 108" overall height, and custom overall heights are available to suit any ceiling.
Suspension is by four aircraft cables with cord, and multiple canopy and stem options are available, with a mounting kit included for a standard J-box. An optional battery backup provides emergency operation. The LEXH-LED is UL and CUL listed for damp locations,
Build America, Buy America Act compliant, and backed by a 5-year warranty on LED components.
Build America, Buy America Act compliant, and backed by a 5-year warranty on LED components.
Material: Aluminum housing and steel chassis
Lens Material: White smooth acrylic lens (no optional accents listed)
Mounting: Suspended pendant — (4) aircraft cable with cord; mounting kit included for standard J-box; multiple canopy and stem options; custom overall heights available
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions: 36-LED: 12" H × 36" W (108" overall height standard)
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
Resources
Material: Aluminum housing and steel chassis
Lens Material: White smooth acrylic lens (no optional accents listed)
Mounting: Suspended pendant — (4) aircraft cable with cord; mounting kit included for standard J-box; multiple canopy and stem options; custom overall heights available
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions: 36-LED: 12" H × 36" W (108" overall height standard)
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
The LEXH-LED turns overhead lighting into an architectural feature. Its clean geometric frame and glowing white acrylic face give large interiors a modern focal point, while dependable LED performance, flexible suspension and American manufacturing make it an easy specification for designers and contractors alike.
Ideally Suited For
• Corporate lobbies and reception areas
• Open-plan offices and conference rooms
• Hotel and hospitality common spaces
• Retail showrooms and boutiques
• Higher-education commons, libraries and atriums
Key Features & Options
• Aluminum housing with steel chassis and white smooth acrylic lens
• Standard 0–10V dimming to 10% or 1%
• Field-replaceable LED module, CRI > 90, five CCT options
• Universal 120–277V driver
• Suspension by (4) aircraft cables with cord; mounting kit for standard J-box
• Multiple canopy and stem options plus custom overall heights
• Optional 90-minute battery backup (with 0–10V)
• Five standard finishes plus optional premium finish; custom finishes available
• UL and CUL listed for damp locations
• Build America, Buy America Act compliant — made in America
• Typical lead time of 6 weeks
• 5-year LED warranty with optional 10-year warranty
Ratings & Compliance
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Damp
- Made in America
Lumens
- 9080
- 14520
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
CRI
- 90
Shape
- Square
- Triangular
Lamp Source
- LED
- Screw-In LED
Listings
- cUL
Materials
- Acrylic
- Aluminum
Watts
- 72
- 107
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Diameter
- 36
Diffuser
- Amber Honey Alabaster
- Beige Alabaster
- Opal Alabaster
- Rapid Textured Acrylic
- White Frosted Acrylic
- White Linen Acrylic
- White Smooth Acrylic
- White Smooth Polycarbonate
Dimming Range
- 1%
Distribution
- Indirect/Direct
- Wide
Mounting
- Ceiling
- Hanging
Static LED Color
- White
Voltage
- 120-277 V
- 347-480 V
- UNV
Circuit
- Single
Controls Options
- Occupancy Sensor
Dimensions
- L: 12 In. W: 36 In. H: 108 In.
Lamp Base
- Medium Base
