LBLWLBLW

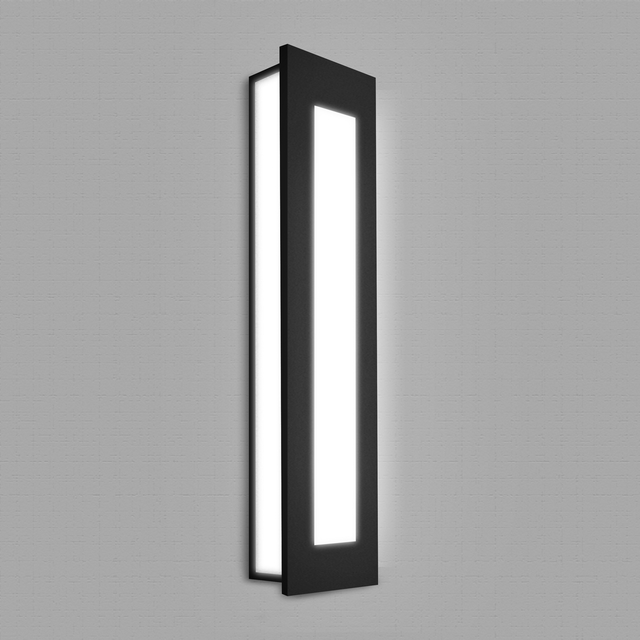

15" 27" Tall Damp Listed Wall Sconce
The LBLW-LED is a contemporary framed vertical wall sconce with steel housing and chassis. The front diffuser is a translucent bonded linen material available in white linen, chocolate textured, rapid textured, and black textured acrylic. The fixture's open framed profile creates a distinct architectural presence with soft textured light from the front face. Available in 15" and 27" heights, the design suits corridor, lobby, and accent lighting applications. Custom cage styles are available, and the fixture mounts to a standard J-Box.
Standard 0–10V dimming is included, with TRIAC/ELV available via the DIMLD option. An optional concealed occupancy sensor (OCCHFA) enables demand-based control. Battery backup (BB10 — 10W for 90 minutes, 0–10V only) is available for emergency egress applications. Optional 90 CRI can be specified through the factory.
The LBLW-LED is ADA compliant, UL and CUL listed for DAMP locations, and backed by a 5-year warranty on LED components with an optional 10-year term.
Resources
Material: Steel housing and chassis
Lens Material: Translucent bonded linen front diffuser (WLA, CTA, RTA, BTA); optional trim — consult factory
Mounting: Mounts to standard J-Box; custom cage styles available
ADA Compliant: Yes — 3.5" depth
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions: 15" H × 6.5" W × 3.5" D (LBLW-15)
Dimensions: 27" H × 6.5" W × 3.5" D (LBLW-27)
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
The LBLW-LED is a contemporary framed linen sconce combining ADA compliance, optional occupancy sensing, and battery backup in a slim 3.5" depth profile — well suited to healthcare, hospitality, and multi-family interior corridor applications.
Ideally Suited For:
• Healthcare facility corridors and patient room entries
• Hotel and hospitality guestroom corridor lighting
• Multi-family residential interior corridor and stairwell lighting
• Corporate office interior accent and corridor lighting
• Educational and institutional hallway lighting
Key Features & Options:
• ADA compliant — 3.5" depth
• DAMP location rated
• Two sizes: 15" and 27"
• Translucent linen front diffuser in multiple color options
• Optional concealed occupancy sensor (OCCHFA)
• Optional battery backup (BB10 — 10W, 90-min runtime)
• 0–10V and TRIAC/ELV dimming options
• Optional 90 CRI — consult factory
• Custom cage styles available
• Field-replaceable LED module
• BABA compliant — proudly made in America
• 5-year warranty; optional 10-year term
Ratings & Compliance
- ADA
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Damp
- Made in America
- RoHS
- Title 24
Lumens
- 1400
- 2420
- 3654
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV
- Phase Dimming
- Triac
CRI
- 91
Shape
- Rectangular
Lamp Source
- LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Polycarbonate
- Steel
Watts
- 9
- 18
- 32
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
Controls Options
- Occupancy Sensor
