LCBHLCBH
Translucent Bonded linen Pendant Mount – Sizes from 12” – 36” Dia. Damp
The LCBH-LED is a pendant drum luminaire featuring a steel canopy and housing with a powder-coated finish. The side diffuser is a translucent bonded linen material available in white linen, chocolate textured, rapid textured, and black textured acrylic, accented by four sets of 3/8" square aluminum bars. The standard bottom diffuser is white textured acrylic. Six diameter sizes from 12" through 36" — with custom overall heights — provide exceptional flexibility across intimate and large-scale interior environments. A typical lead time of six weeks applies; consult factory for minimums.
Multiple suspension systems are offered: single stem with 15-degree swivel, single stem with 45-degree swivel, three-cable aircraft cable, and four-cable aircraft cable. Both 0–10V and TRIAC/ELV dimming configurations are supported. Energy Star listed and Title 24/JA8 compliant options are available (F1O, F1P & F1Q). An optional concealed occupancy sensor (OCCHFA) enables demand-based control. Battery backup (BB10 — 0–10V only) provides emergency egress capability.
The LCBH-LED is Build America, Buy America Act compliant, UL and CUL listed for DAMP locations, and backed by a 5-year warranty. For a flush-mount version, see the LCBC.
The LCBH-LED is a pendant drum luminaire featuring a steel canopy and housing with a powder-coated finish. The side diffuser is a translucent bonded linen material available in white linen, chocolate textured, rapid textured, and black textured acrylic, accented by four sets of 3/8" square aluminum bars. The standard bottom diffuser is white textured acrylic. Six diameter sizes from 12" through 36" — with custom overall heights — provide exceptional flexibility across intimate and large-scale interior environments. A typical lead time of six weeks applies; consult factory for minimums.
Multiple suspension systems are offered: single stem with 15-degree swivel, single stem with 45-degree swivel, three-cable aircraft cable, and four-cable aircraft cable. Both 0–10V and TRIAC/ELV dimming configurations are supported. Energy Star listed and Title 24/JA8 compliant options are available (F1O, F1P & F1Q). An optional concealed occupancy sensor (OCCHFA) enables demand-based control. Battery backup (BB10 — 0–10V only) provides emergency egress capability.
The LCBH-LED is Build America, Buy America Act compliant, UL and CUL listed for DAMP locations, and backed by a 5-year warranty. For a flush-mount version, see the LCBC.
Material: Steel canopy and housing with powder-coated finish; (4) sets of 3/8" sq aluminum bar accents
Lens Material: Side: translucent bonded linen (WLA, CTA, RTA, BTA); bottom: white textured acrylic (WTA); optional trim — consult factory
Mounting: Mounting kit included for standard J-Box; multiple suspension options: single stem (1S15, 1SLM45), aircraft cable (3AC, 4AC); custom OAH available
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions: 12.75" dia × 4.5" H, 12" OAH (LCBH-12)
Dimensions: 15.5" dia × 4.5" H, 12" OAH (LCBH-15)
Dimensions: 19.5" dia × 5.25" H, 12" OAH (LCBH-19)
Dimensions: 24.5" dia × 8" H, 15" OAH (LCBH-24)
Dimensions: 30.5" dia × 8" H, 24" OAH (LCBH-30)
Dimensions: 36" dia × 8" H, 24" OAH (LCBH-36)
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
Energy Star: Available on qualifying configurations
Title 24 / JA8: Title 24 / JA8 Compliant — F1O, F1P & F1Q configurations only
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
Resources
Material: Steel canopy and housing with powder-coated finish; (4) sets of 3/8" sq aluminum bar accents
Lens Material: Side: translucent bonded linen (WLA, CTA, RTA, BTA); bottom: white textured acrylic (WTA); optional trim — consult factory
Mounting: Mounting kit included for standard J-Box; multiple suspension options: single stem (1S15, 1SLM45), aircraft cable (3AC, 4AC); custom OAH available
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions: 12.75" dia × 4.5" H, 12" OAH (LCBH-12)
Dimensions: 15.5" dia × 4.5" H, 12" OAH (LCBH-15)
Dimensions: 19.5" dia × 5.25" H, 12" OAH (LCBH-19)
Dimensions: 24.5" dia × 8" H, 15" OAH (LCBH-24)
Dimensions: 30.5" dia × 8" H, 24" OAH (LCBH-30)
Dimensions: 36" dia × 8" H, 24" OAH (LCBH-36)
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
Energy Star: Available on qualifying configurations
Title 24 / JA8: Title 24 / JA8 Compliant — F1O, F1P & F1Q configurations only
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
The LCBH-LED pairs six sizes and four suspension system choices with Energy Star, Title 24, BABA, and optional occupancy sensing — making it one of Lightway's most specification-ready pendant drums for hospitality, healthcare, and institutional projects.
Ideally Suited For:
• Hotel lobbies, ballrooms, and hospitality dining areas

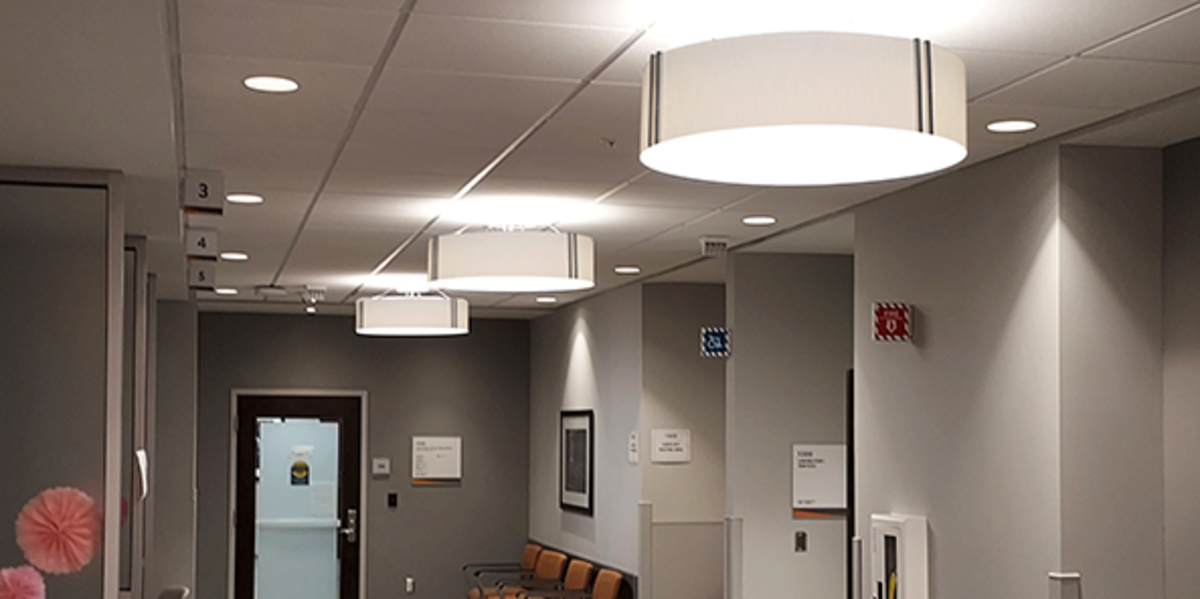

• Healthcare facility waiting rooms and common corridors
• Corporate office atriums and conference areas
• Multi-family residential lobby and amenity spaces
• Educational and institutional assembly areas
Key Features & Options:
• Energy Star listed on qualifying configurations
• Title 24 / JA8 compliant — F1O, F1P & F1Q configurations
• Build America, Buy America Act compliant
• Six sizes: 12" through 36" diameters; custom overall heights
• Multiple suspension systems: single stem (15° or 45° swivel), 3- or 4-cable aircraft cable
• Optional concealed occupancy sensor (OCCHFA)
• Optional battery backup (BB10 — 10W, 90-min runtime)
• Translucent linen side diffuser in multiple color options
• Aluminum bar accents — 4 sets of 3/8" sq bars
• 0–10V and TRIAC/ELV dimming options
• Field-replaceable LED module
• BABA compliant — proudly made in America
• 5-year warranty; optional 10-year term
Ratings & Compliance
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Damp
- Energy Star
- Made in America
- RoHS
- Title 24
Lumens
- 863
- 1361
- 1400
- 2057
- 2115
- 4000
- 4840
- 9680
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
CRI
- 81
- 91
Shape
- Round
Lamp Source
- Integrated LED
- LED
- Screw-In LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Steel
Watts
- 9
- 10
- 13
- 15
- 23
- 36
- 72
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Diameter
- 12
- 15
- 20
- 24
- 30
- 36
- 48
Diffuser
- Black Textured Acrylic
- Chocolate Textured Acrylic
- Rapid Textured Acrylic
- White Frosted Acrylic
- White Linen Acrylic
- White Smooth Acrylic
Dimming Range
- 1%
- 10%
Distribution
- Very Wide
- Wide
- Wide
Mounting
- Pendant
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Circuit
- Dual
- Single
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
Controls Options
- Occupancy Sensor
Lamp Base
- E26
- Integrated
- Medium Base
