New Product
ADA Complaint 16" Damp Listed Linear & Vanity Lighting

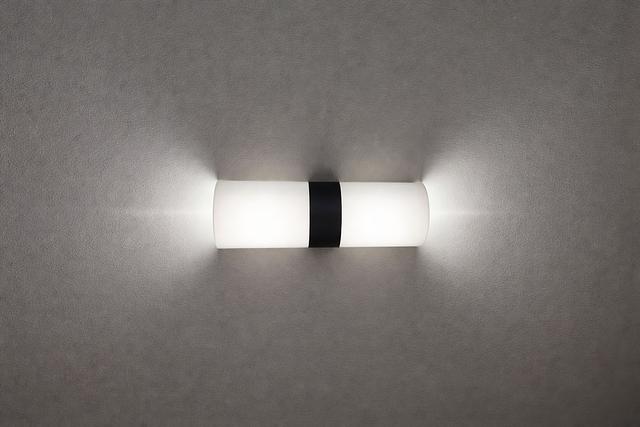

The CBMV‑16 is a sleek, ADA‑compliant linear wall fixture designed for modern commercial and architectural spaces. Built on a steel chassis with a decorative band and paired with a white smooth acrylic diffuser, it delivers clean lines, uniform illumination, and long‑term durability.
The fixture can be mounted vertically or horizontally, and its open‑side design creates a subtle floating effect ideal for corridors, restrooms, patient rooms, and public spaces.
Powered by a high‑efficiency LED module, the CBMV‑16 outputs 1620 source lumens at 12 watts, offering excellent efficacy and visual comfort. With a CRI greater than 90, it provides accurate color rendering suitable for hospitality, healthcare, and retail environments.
The fixture includes 0–10V dimming to 10%, ensuring smooth, flicker‑free control
The fixture can be mounted vertically or horizontally, and its open‑side design creates a subtle floating effect ideal for corridors, restrooms, patient rooms, and public spaces.
Powered by a high‑efficiency LED module, the CBMV‑16 outputs 1620 source lumens at 12 watts, offering excellent efficacy and visual comfort. With a CRI greater than 90, it provides accurate color rendering suitable for hospitality, healthcare, and retail environments.
The fixture includes 0–10V dimming to 10%, ensuring smooth, flicker‑free control
Resources
Engineered for reliability, the CBMV‑16 is UL and CUL listed for damp locations, Build America, Buy America Act compliant, and features a replaceable LED module for long‑term serviceability.
- Build America, Buy America Act Compliant
- UL and CUL listed DAMP location
- Build America, Buy America Act Compliant
- UL and CUL listed DAMP location
- Size: 16" length × 5" height × 2.5" depth
- Kelvin options: 3000K, 3500K, 4000K
- Finishes: Satin Black, Textured Black, multiple whites, bronze tones, shimmer gray, pewter, anodized silver, pearl beige, and more
- Diffuser: White Smooth Acrylic (WSA)
- Driver: 0–10V dimming (DIM option)
Ratings & Compliance
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Damp
- Made in America
Lumens
- 1620 Lm
Dimming Protocol
- 0-10 V
CRI
- 90 CRI
Shape
- Rectangular
- Tubular
Lamp Source
- LED
Listings
- UL
Materials
- Acrylic
- Steel
Watts
- 12 w
Warranty
- 5 yr
- 10 yr
CCT
- 3000K
- 3500K
- 4000K
Dimming Range
- 10%
Distribution
- Wide
Static LED Color
- White
Voltage
- 120-277 V
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Gloss White
- Medium Grey
- Pearl White
- Pewter
- Satin Bronze
- Text White
- Textured Black
- Textured Bronze
- Yolk White
Dimensions
- H: 5 In. L: 16 In. W: 2.5 In.
