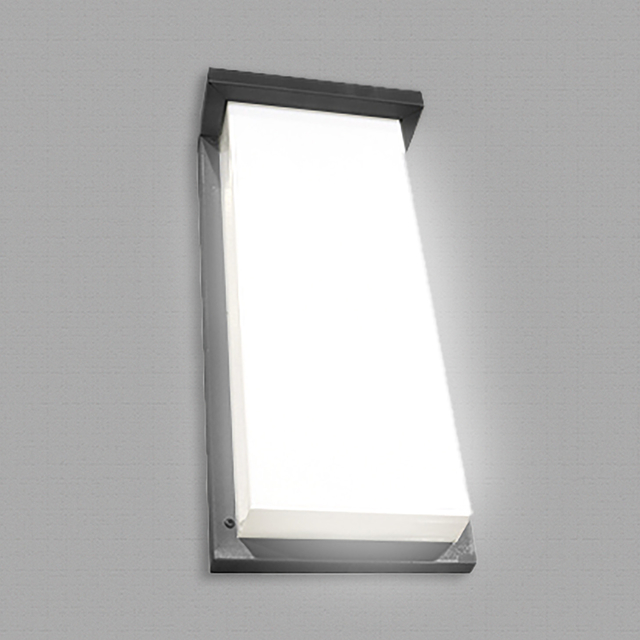

MENW 600 SeriesMENW 600 Series
12" – 50" Tall - Wet listed Wall Mount
The MENW 600 Series LED is an ADA‑compliant architectural wall fixture designed for commercial, institutional, and multi‑family environments requiring a shallow profile, durable construction, and consistent illumination. Built with a steel housing and a UV‑stabilized, high‑impact DR acrylic diffuser, the MENW provides top and bottom white acrylic lensing as standard, with an optional lens cover (NCL) to eliminate up/down light when required. The fixture supports multiple cage styles and finish combinations, offering strong design flexibility. Standard features include CRI > 90, universal 120/277V operation, and 0–10V dimming to 10%. Optional photocell control and battery backup expand functionality for exterior, security, and egress applications. Wet‑location listing and replaceable LED modules ensure long‑term reliability. Proudly made in America with BABA‑compliant options always available.
Resources
- Steel housing and chassis
- UV‑stabilized, high‑impact‑resistant 100% DR acrylic diffuser
- ADA‑compliant low‑profile design
- Integral mounting plate with keyhole slots
- Top and bottom white acrylic lens — standard
- Optional NCL aluminum lens cover eliminates up/down light
- Wet‑location rated (UL & CUL)
- Available fixture heights: 12", 16", 18", 26", 38", 50"
- Width: 6 1/2"
- Depth: 4"
- Mounting centers: 6", 8", 9", 13", 19", 25"
- LED light source
- 0–10V dimming to 10% included
- TRIAC/ELV dimming available on select LED engines
- Universal 120/277V input
- CRI > 90
- Replaceable LED module
- Color temperatures: 3000K, 3500K, 4000K
- ENERGY STAR components available on select models
- UL and CUL listed for wet locations
- Optional Photocell (Option 21)
- Specify voltage:
- 01 = 120V
- 02 = 277V
- Increases fixture depth by 1 1/2"
- Optional Battery Backup (BB10)
- Available on 0–10V dimming configurations
- Optional J‑box with knockouts (39)
- Color temperatures: 3000K, 3500K, 4000K
- ENERGY STAR components available on select models
- High‑efficiency LED components with long service life
- 5‑year warranty on LED components
Options & Customization
- Cage styles: A, B, C, D, E, F
- Optional NCL aluminum lens cover
- Optional photocell (21)
- Optional battery backup (BB10)
- Optional all‑aluminum construction (42)
Benefits
- ADA‑compliant low‑profile design ideal for public corridors and walkways
- Durable construction suitable for high‑traffic environments
- Wet‑location rated for interior or exterior use
- Replaceable LED module reduces long‑term maintenance
- Optional photocell and battery backup expand security and egress capability
- Multiple cage, finish, and lensing options for design flexibility
- Proudly made in America with BABA‑compliant options always available
Ideally Suited For
- ADA‑required low‑profile applications
- Corridors and hallways
- Multi‑family and hospitality environments
- Schools, universities, and public buildings
- Healthcare and assisted‑living facilities
- Exterior walkways and covered entries
- Security and perimeter lighting
- Wet‑location architectural applications
Ratings & Compliance
- ADA
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- JA8
- Made in America
- RoHS
- Title 24
- Wet
Lumens
- 1210
- 1361
- 1400
- 1600
- 2420
- 3235
- 3412
- 3630
- 4840
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
- Phase Dimming
- Triac (Leading Edge)
CRI
- 91
Shape
- Spherical
Lamp Source
- LED
- Screw-In LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Steel
Watts
- 9
- 12
- 15
- 18
- 27
- 29
- 30
- 36
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
Controls Options
- Occupancy Sensor
- Photocell
