LEVW-COLORS
LEVW-App.jpgLEVW-COLORS
9" Tall Damp listed, ADA complaint Wall Lighting

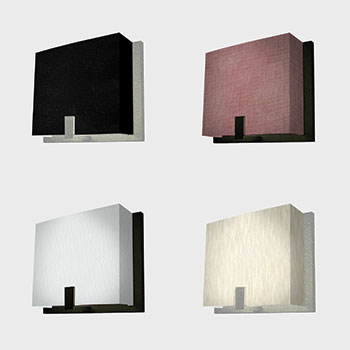

The LEVW-COLORS wall sconce delivers bold, customizable color to any interior through a curated selection of washable laminated color diffusers spanning primary, earthtone, and retro palettes — with the option to specify any custom Pantone or HEX color. The steel housing and chassis support a signature floating outer frame extending ¾" from the wall, creating visual depth and a contemporary silhouette suited to branded and design-driven environments.
The fixture supports standard dimming to 10%, with 0–10V and TRIAC/ELV line-voltage options across the configuration range. Optional integral battery backup (BB10, 10 W for 90 minutes) is available on 0–10V drivers. Custom printed lens styles are available to complement branded or themed installations.
ADA compliant at 4" depth, the LEVW-COLORS is UL and CUL Listed for damp locations, Energy Star listed on select configurations, and Title 24/JA8 compliant on F1O and F1P configurations. Proudly handcrafted in the United States and BABA compliant, with a 5-year LED component warranty standard.
The LEVW-COLORS wall sconce delivers bold, customizable color to any interior through a curated selection of washable laminated color diffusers spanning primary, earthtone, and retro palettes — with the option to specify any custom Pantone or HEX color. The steel housing and chassis support a signature floating outer frame extending ¾" from the wall, creating visual depth and a contemporary silhouette suited to branded and design-driven environments.
The fixture supports standard dimming to 10%, with 0–10V and TRIAC/ELV line-voltage options across the configuration range. Optional integral battery backup (BB10, 10 W for 90 minutes) is available on 0–10V drivers. Custom printed lens styles are available to complement branded or themed installations.
ADA compliant at 4" depth, the LEVW-COLORS is UL and CUL Listed for damp locations, Energy Star listed on select configurations, and Title 24/JA8 compliant on F1O and F1P configurations. Proudly handcrafted in the United States and BABA compliant, with a 5-year LED component warranty standard.
Material: Steel housing and chassis
Lens Material: Washable laminated color diffuser — extensive standard palette plus custom Pantone/HEX options; opaque (CV) or semi-translucent (CT) available
Mounting: Wall mount — center lockup with hardware included; outer frame floats ¾" from wall
ADA Compliant: Yes — 4" depth
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions: LEVW-9-LED: 9" H × 12" W × 4" D
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
Energy Star: Yes — on select configurations
Title 24 / JA8: Yes — F1O & F1P configurations only
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
Resources
Material: Steel housing and chassis
Lens Material: Washable laminated color diffuser — extensive standard palette plus custom Pantone/HEX options; opaque (CV) or semi-translucent (CT) available
Mounting: Wall mount — center lockup with hardware included; outer frame floats ¾" from wall
ADA Compliant: Yes — 4" depth
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions: LEVW-9-LED: 9" H × 12" W × 4" D
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
Energy Star: Yes — on select configurations
Title 24 / JA8: Yes — F1O & F1P configurations only
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
The LEVW-COLORS transforms a sconce from a utility fixture into a powerful design statement. With an expansive color palette — or any custom Pantone/HEX color — it empowers designers to reinforce brand identity, create mood, and energize spaces from healthcare corridors to vibrant hospitality venues.
Ideally Suited For:
• Branded hospitality environments and boutique hotels
• Healthcare and behavioral health facilities using color-coded wayfinding
• Educational campuses with school color integration
• Entertainment venues, themed restaurants, and bars
• Multifamily residential common areas seeking distinctive character
Key Features & Options:
• ADA compliant — 4" projection from wall
• Extensive color palette: Primary, Earthtone, and Retro series plus custom Pantone/HEX on request
• Opaque (CV) and semi-translucent (CT) diffuser options
• Outer frame extends ¾" for floating dimensional effect
• 0–10V dimming standard; TRIAC/ELV on qualifying configurations
• Optional integral battery backup (BB10 — 10 W, 90 minutes; 0–10V only)
• Energy Star listed — select configurations
• Title 24 / JA8 compliant — F1O & F1P configurations
• Custom printed lens styles available
• BABA compliant — proudly handcrafted in the USA
• 5-year LED component warranty (optional 10-year available)
• UL and CUL Listed — DAMP location
Ratings & Compliance
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Damp
- Energy Star
- Interior
- JA8
- Made in America
- Title 24
Lumens
- 863
- 1361
- 1400
- 2420
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV
- Triac
CRI
- 90
Shape
- Square
Lamp Source
- Integrated LED
- LED
Listings
- UL
Materials
- Acrylic
- Metal
- Steel
Watts
- 9
- 10
- 15
- 18
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Dimming Range
- 1%
- 10%
Distribution
- Wall Wash
- Wide
Static LED Color
- White
Voltage
- 120-277 V
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Circuit
- Single
Color / Finish
- Anodized Silver
- Brass Powder
- Butterscotch
- Cornflower Blue
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Text Black
- Text Bronze
- Text White
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
Controls Options
- Occupancy Sensor
Dimensions
- L: 4 In. W: 12 In. H: 9 In.
Lamp Base
- Integrated
