DSYV
DSYV-B1.jpgDSYV
24" 36" or 48" Damp/Wet Listed Linear & Vanity Lighting
The DSYV-LED is a sleek linear LED wall fixture built on a steel chassis with end caps and a white smooth acrylic diffuser. Available in 24", 36", and 48" lengths, it mounts to a standard J-Box with slotted anchor holes and can be installed horizontally or vertically. An optional WET-listed version is available for covered outdoor applications.
CRI >90 standard with 0–10V dimming included. Optional features include a concealed occupancy sensor (OCCHFA), optional 347V input voltage, and battery backup (36" and 48" sizes only, 0–10V).
ADA compliant at 3" depth, BABA compliant, UL and CUL listed for DAMP locations (WET optional), and backed by a 5-year LED component warranty.
The DSYV-LED is a sleek linear LED wall fixture built on a steel chassis with end caps and a white smooth acrylic diffuser. Available in 24", 36", and 48" lengths, it mounts to a standard J-Box with slotted anchor holes and can be installed horizontally or vertically. An optional WET-listed version is available for covered outdoor applications.
CRI >90 standard with 0–10V dimming included. Optional features include a concealed occupancy sensor (OCCHFA), optional 347V input voltage, and battery backup (36" and 48" sizes only, 0–10V).
ADA compliant at 3" depth, BABA compliant, UL and CUL listed for DAMP locations (WET optional), and backed by a 5-year LED component warranty.
Material: Steel chassis and end caps
Lens Material: White smooth acrylic diffuser
Mounting: Mounts to standard J-Box with slotted anchor holes; vertical or horizontal mounting
ADA Compliant: Yes — 3" depth
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.

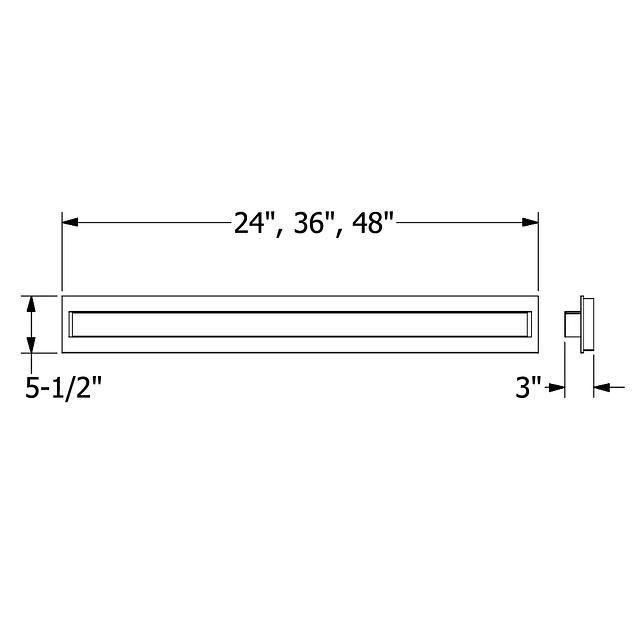

Dimensions:
Lengths: 24" / 36" / 48"
Height (depth): 5½"
Depth (projection): 3"
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
Resources
Material: Steel chassis and end caps
Lens Material: White smooth acrylic diffuser
Mounting: Mounts to standard J-Box with slotted anchor holes; vertical or horizontal mounting
ADA Compliant: Yes — 3" depth
Finish: Non-VOC powder-coat and environmentally responsible low-VOC metal finishing options. Custom finishes — consult factory.
BABA: Proudly made in America — BABA compliant options always available.
Dimensions:
Lengths: 24" / 36" / 48"
Height (depth): 5½"
Depth (projection): 3"
Replaceable LED Module: Yes — field replaceable
3-Step MacAdam Binning: Standard
Lumens: Source lumens — see configuration table
Lumen Maintenance: > 60,000 hours
Integral Driver: Standard
Dimming: 0–10V; TRIAC/ELV on qualifying configurations. Consult factory for other options.
Voltage: 120–277V universal standard
CRI: > 90 Standard
CCT Options: 2700K – 3000K – 3500K – 4000K – 5000K
UL / CUL Listing: UL and CUL Listed — DAMP location
Warranty: 5-year warranty on LED components with optional 10-year warranty available
The DSYV-LED linear wall fixture delivers CRI >90 LED performance in three lengths with ADA compliance, optional WET rating, and occupancy sensor capability — an ideal specification for commercial corridors, hospitality, and healthcare environments. BABA compliant and made in America.
Ideally Suited For
• ADA-compliant corridor and hallway wall lighting
• Hotel and hospitality ambient wall illumination
• Healthcare facility patient corridor and common area lighting
• Commercial office building lobby and corridor lighting
• Covered outdoor entry and breezeway wall lighting (WET option)
Key Features & Options
• ADA compliant — 3" depth
• CRI >90 standard — premium color rendering
• Three lengths: 24", 36", 48"
• Horizontal or vertical mounting flexibility
• Optional WET-listed version available
• Optional concealed occupancy sensor (OCCHFA)
• Optional 347V input voltage
• Optional battery backup — 36" and 48" only (0–10V)
• Proudly made in America — BABA compliant
• 5-year LED warranty; optional 10-year warranty available
Ratings & Compliance
- ADA
- ARRA
- Build America Buy America (BABA)
- Buy America
- Buy American Act (BAA)
- Damp
- JA8
- Made in America
- RoHS
- Title 24
Lumens
- 2420
- 3630
- 4840
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV
- Phase Dimming
- Triac
CRI
- 91
Shape
- Rectangular
Lamp Source
- LED
Listings
- UL
- cUL
Materials
- Acrylic
- Aluminum
- Steel
Watts
- 18
- 27
- 36
Warranty
- 5 yr
- 10 yr
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Static LED Color
- White
Voltage
- 110 V
- 110-120 V
- 110-277 V
- 120 V
- 120-277 V
- 347 V
- Dual Volt
- MVOLT
- Multi Volt
- Multi-Volt
- UNV
Color / Finish
- Anodized Silver
- Brass Powder
- Brushed Aluminum
- Brushed Nickel
- Butterscotch
- Cornflower Blue
- Custom
- Deep Red
- Gloss White
- Medium Grey
- Parkers Blue
- Pearl Beige
- Pewter
- Sage
- Sand Fossil
- Satin Black
- Satin Bronze
- Shimmer Gray
- Silver Gray
- Textured Black
- Textured Bronze
- Textured Silver
- Textured White
- Tuscan Sun
- Yolk White
Controls Options
- Occupancy Sensor
